The settings fit most ring profiles and widths. In the description you can see which stone sizes we have today. If you want a larger or smaller stone size, we can probably solve it. Feel free to ask us for advice. The measurements given below refer to a center stone of approx. 0.30 ct. The dimensions are given as diameter x height or length x width x height.

One stone settings

Setting: EF1/Estelle
Interval: 0,04-1,00ct
Dimensions: 4,8 x 2,8mm
Info: Triangular tab prongs, low set stone

Setting: EF2/Ingrid
Interval: 0,08-2,00ct
Dimensions: 5,5 x 4,4mm
Info: Corner prongs, bowlshaped

Setting: EF3/Josephine
Interval: 0,06-1,00ct
Dimensions: 5,5 x 4,2mm
Info: Tab prongs, bowlshaped with a frame

Setting: EF4/Leonore
Interval: 0,10-1,20ct
Dimensions: 5,6 x 4,3mm
Info: Oval tab prongs, thick with a frame, soldered in the shank

Setting: EF5/Athena
Interval: 0,08-1,00ct
Dimensions: 5,1 x 3,7mm
Info: Square tab prongs, thick and curved

Setting: EF5 Låg
Interval: 0,08-1,00ct
Dimensions: 5,1 x 3,0mm
Info: Square tab prongs, thick and curved, low set stone

Setting: EF6
Interval: 0,17ct & 0,35ct
Dimensions: 5 x 3,2mm
Info: For princess stones, corner prongs

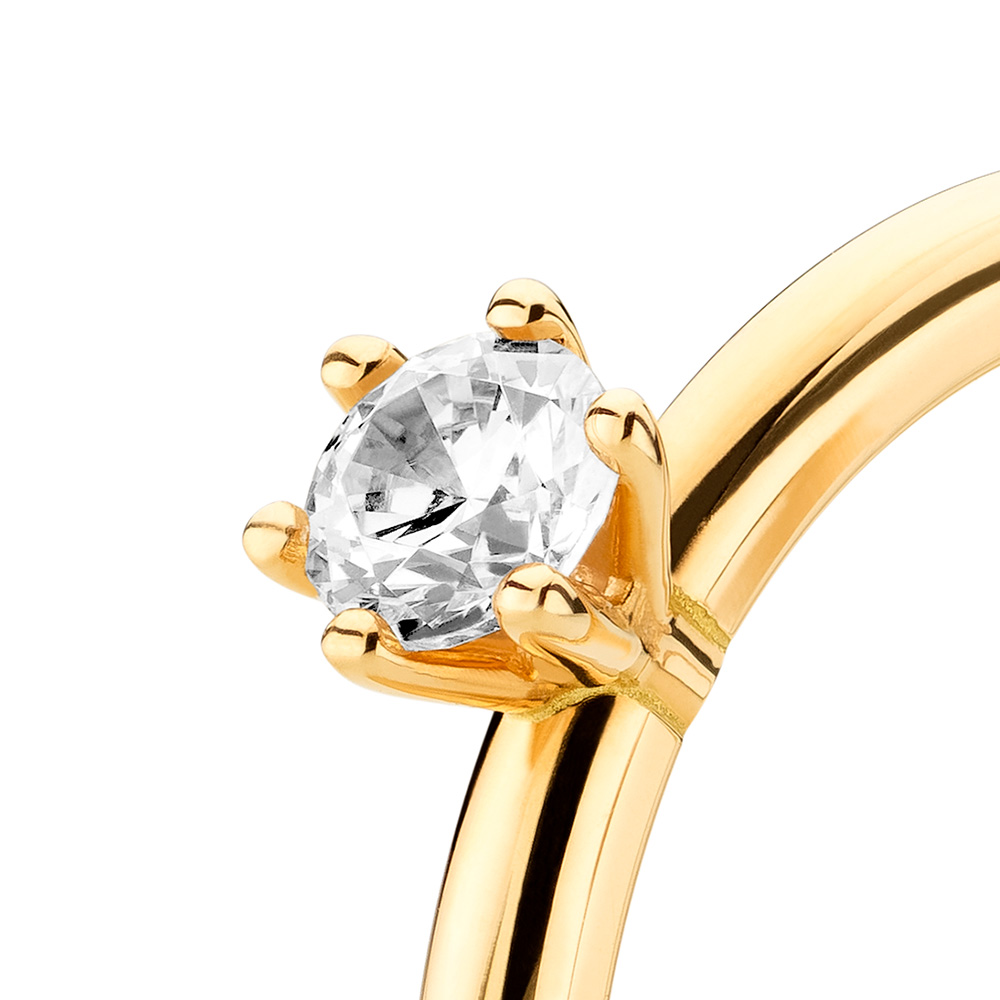

Setting: EF10
Interval: 0,05-1,20ct
Dimensions: 5,7 x 4,0mm
Info: Round prongs, thin and linear, solded in the shank

Setting: EF16
Interval: 0,12-1,00ct
Dimensions: 6,8 x 4,0mm
Info: V-shaped setting

Setting: EF18
Interval: 0,08-1,20ct
Dimensions: 4,9 x 4,0mm
Info: Round prongs, thin and linear, solded in the shank

Setting: EF20
Interval: 0,03-1,00ct
Dimensions: 4,2 x 4,7mm
Info: Tab prongs, thin and curved, high set stone

Setting: EF22
Interval: 0,10-2,00ct
Dimensions: 6,2 x 4,0mm
Info: Square tab prongs,thin and linear, like Victoria but solded on the shank

Setting: EF23
Interval: 0,10-2,00ct
Dimensions: 5,0 x 4,2mm
Info: Square tab prongs,thin and linear, like Blanka but solded on the shank

Setting: EF24
Interval: 0,08-1,50ct
Dimensions: 6,1 x 3,9mm
Info: Round prongs, thick and linear, always twisted

Setting: EF28
Interval: 0,04-1,25ct
Dimensions: 5,7 x 4,1mm
Info: Round prongs, thin and linear

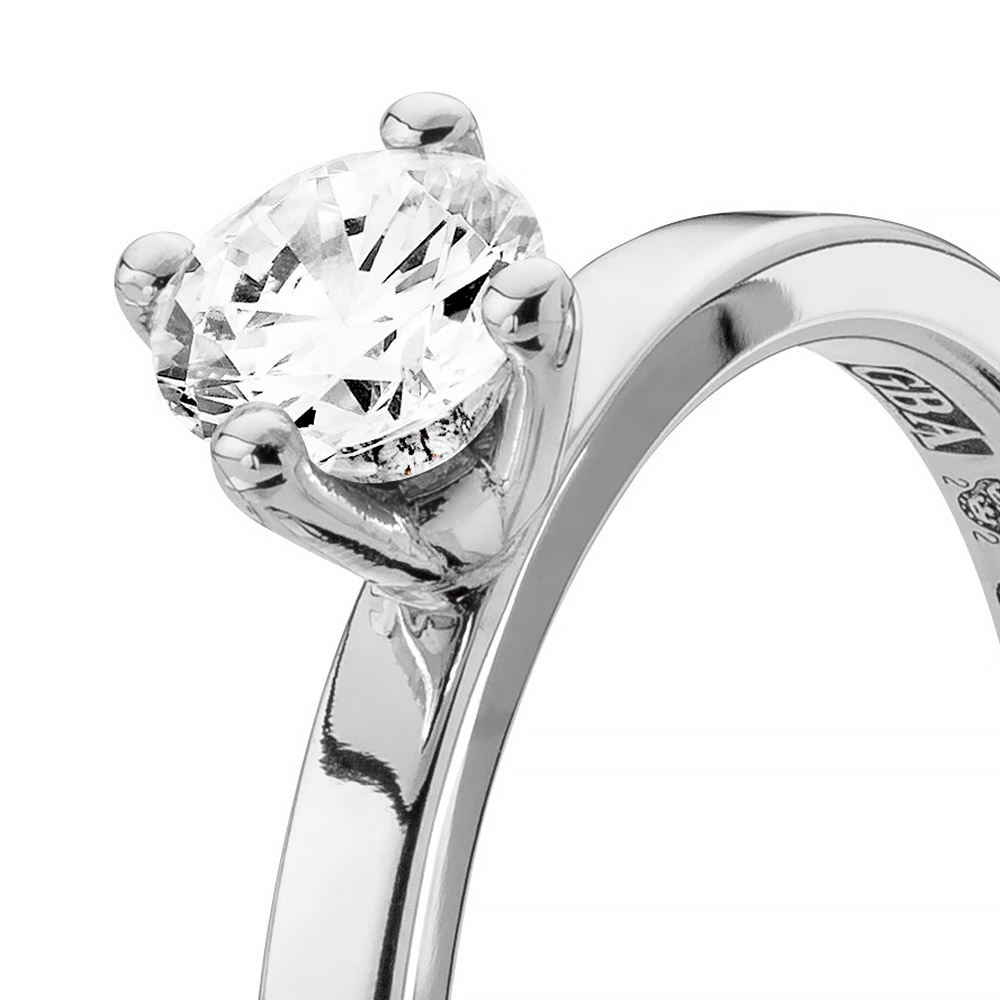

Setting: EF31
Interval: 0,04-1,00ct
Dimensions: 4,5 x 4,2mm
Info: Round prongs, thin and linear, always twisted

Setting: EF32
Interval: 0,15-2,00ct
Dimensions: 3,9 x 3,8 x 3,0mm
Info: For oval stones, round prongs, thin and curved with a frame

Setting: EF33
Interval: 0,10-0,50ct
Dimensions: 6,0 x 3,0mm
Info: Margin edge approx. 0.9 mm

Setting: EF34
Interval: 0,20-2,00ct
Dimensions: 4,2 x 6,5 x 3,6mm
Info: For oval stones, round prongs, thin and curved with a frame

Setting: EF36
Interval: 0,03-1,00ct
Dimensions: 4,6 x 3,5mm
Info: Triangular tab prongs, low set stones

Setting: EF37
Interval: 0,08-1,00ct
Dimensions: 4,3 x 3,6mm
Info: Claw prongs, thin and curved

Setting: EF38
Interval: 0,08-1,00ct
Dimensions: 5,3 x 4,0mm
Info: Tab claw prongs, thin and linear

Setting: EF39
Interval: 0,10-1,00ct
Dimensions: 5,4 x 4,5mm
Info: Square tab prongs, thick and curved with a frame, like Contessa but solded on the shank

Setting: EF41
Interval: 0,10-1,00ct
Dimensions: 5,0 x 4,0mm
Info: Tab claw prongs, thin and curved

Setting: FO1
Interval: 0,05-1,00ct
Dimensions: 4,5 x 4,3mm
Info: Square tab prongs, tulip-shaped

Setting: FO2
Interval: 0,05-1,00ct
Dimensions: 5,2 x 3,7mm
Info: Round prongs, thick and linear, low set stone

Setting: FO4
Interval: 0,05-0,60ct
Dimensions: Mått: 5,2 x 5,0mm
Info: Triangular tab prongs, high set stone

Setting: Berta
Interval: 0,20/0,30/0,40/0,50ct
Dimensions: Mått: 5,4 x 3,0mm
Info: Miligriff edge, bowlshaped

Multi-stone settings

Setting: Valborg
Interval: 1×0,23ct + 2×0,07ct / 1×0,30ct + 2×0,11ct
Dimensions: 12,8 x 5,5 x 3,3mm
Info: Three-stone setting in two sizes, miligriff edge, bowl-shaped

Setting: Kerstin
Interval: 0,20/0,30/0,40/0,50 + 6×0,02ct
Dimensions: 12,1 x 5,4 x 3,4mm
Info: Multi-stone setting in four sizes on center stone, miligriff edge, round prongs

Setting: Agneta
Interval: 1×0,25ct + 2×0,04ct / 1×0,50ct + 2×0,07ct / 1×0,75ct + 2×0,10ct / 1×1,25ct + 2×0,15ct / 1×2,00ct + 2×0,25ct
Dimensions: 8,6 x 4,6 x 3,0mm
Info: Three-stone setting in five sizes, oval center stone, round side stones with three round prongs

Setting: Anita
Interval: 1×0,35ct + 2×0,07ct / 1×0,50ct + 2×0,10ct / 1×0,75ct + 2×0,15ct / 1×1,00ct + 2×0,25ct
Dimensions: 10,3 x 4,8 x 2,9mm
Info: Three-stone setting in four sizes, siodstones with four round prongs

Setting: Lillian
Interval: 1×0,25ct + 2×0,04ct / 1×0,50ct + 2×0,07ct / 1×0,75ct + 2×0,10ct / 1×1,25ct + 2×0,15ct / 1×2,00ct + 2×0,25ct
Dimensions: 8,9 x 4,2 x 3,3mm
Info: Three-stone setting in five sizes, side stones with three round prongs

Setting: Tilda
Interval: 1×0,35ct + 2×0,07ct / 1×0,50ct + 2×0,10ct / 1×0,75ct + 2×0,15ct / 1×1,00ct + 2×0,25ct
Dimensions: 10,9 x 4,7 x 2,8mm
Info: Three stone setting in four sizes, side stones with three round prongs

Setting: Gunilla
Interval: 1×0,25ct + 2×0,04ct / 1×0,50ct + 2×0,07ct / 1×1,00ct + 2×0,12ct
Dimensions: 7,6 x 4,0 x 3,8mm
Info: Three-stone setting in th- ree sizes, based on EF37, claw prongs

Setting: Petronella
Interval: 0,20/0,30/0,40/0,50ct + 6×0,01ct
Dimensions: 10,5 x 4,0 x 3,1mm
Info: Multi-stone setting in four sizes on center stone, round prongs

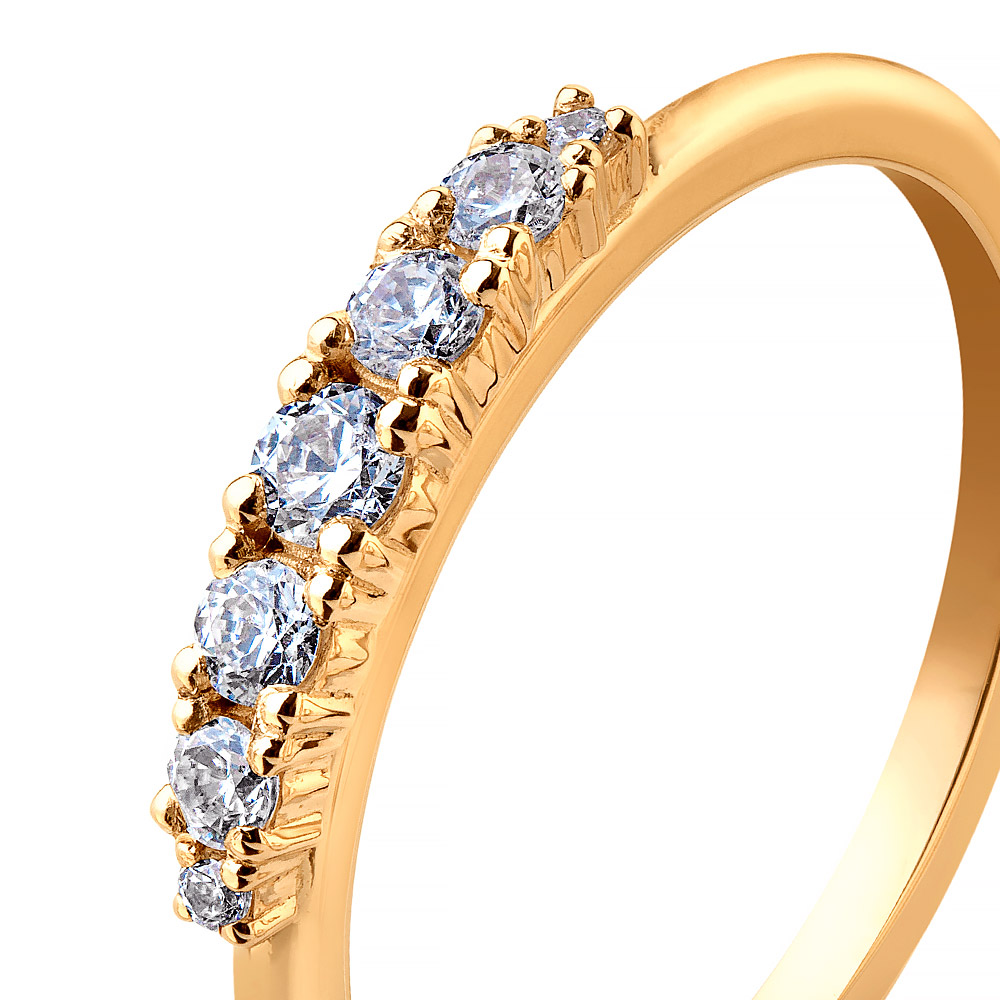

Setting: Gabriella
Interval: 1×0,07ct + 2×0,05ct + 2×0,03ct + 2×0,01ct
Dimensions: 14,1 x 2,9 x 2,4mm
Info: Cluster setting tot. 0.25 ct, round prongs

Setting: Teodora
Interval: 1×0,14ct + 2×0,07ct + 1×0,04ct + 3×0,02ct
Dimensions: 13,4 x 6,0 x 2,8mm
Info: Cluster setting tot. 0.38 ct, round prongs

Setting: Fridolina
Interval: 1×0,04ct + 2×0,03ct + 4×0,02ct + 5×0,01ct
Dimensions: 13,7 x 5,4 x 2,3mm
Info: Cluster setting tot. 0.23 ct, round prongs

Setting: Cassandra
Interval: 1×0,14ct + 1×0,08ct + 1×0,06ct + 1×0,03ct + 5×0,01ct / 1×0,18ct + 1×0,10ct + 1×0,08ct + 1×0,04ct + 5×0,02ct
Dimensions: 12,7 x 7,5 x 2,7mm
Info: Cluster setting in two sizes, tot. 0.36 ct or tot. 0.50 ct, round prongs

Setting: Esmeralda
Interval: 1×0,15ct + 1×0,13ct + 1×0,10ct + 2×0,03ct + 1×0,02ct + 4×0,01ct / 1×0,20ct + 1×0,16ct + 1×0,12ct + 2×0,04ct + 1×0,03ct + 4×0,02ct
Dimensions: 13,0 x 8,6 x 2,7mm
Info: Cluster setting in two sizes, tot. 0.50 ct or tot. 0.67 ct, round prongs

Carmosé settings

Setting: Carm1
Interval: 0,15-0,25ct + 12×0,01ct
Dimensions: 7,2 x 3,0mm
Info: Round halo with grooves on the side, claw set side stones

Setting: Carm2
Interval: 0,26-0,40ct + 12×0,01ct alt. 12×0,015ct
Dimensions: 7,7 x 3,2mm
Info: Round halo with grooves on the side, claw set side stones

Setting: Carm3
Interval: 0,07-0,14ct + 8×0,01ct
Dimensions: 6,1 x 2,8mm
Info: Round halo with grooves on the side, claw set side stones

Setting: Carm4
Interval: 0,15-0,25ct + 12×0,01ct
Dimensions: 7,4 x 3,0mm
Info: Round halo without grooves on the side, claw set side stones

Setting: Carm5
Interval: 0,17-0,20ct + 12×0,01ct
Dimensions: 6,8 x 2,4mm
Info: Square halo with princess center stone, pave set round side stones

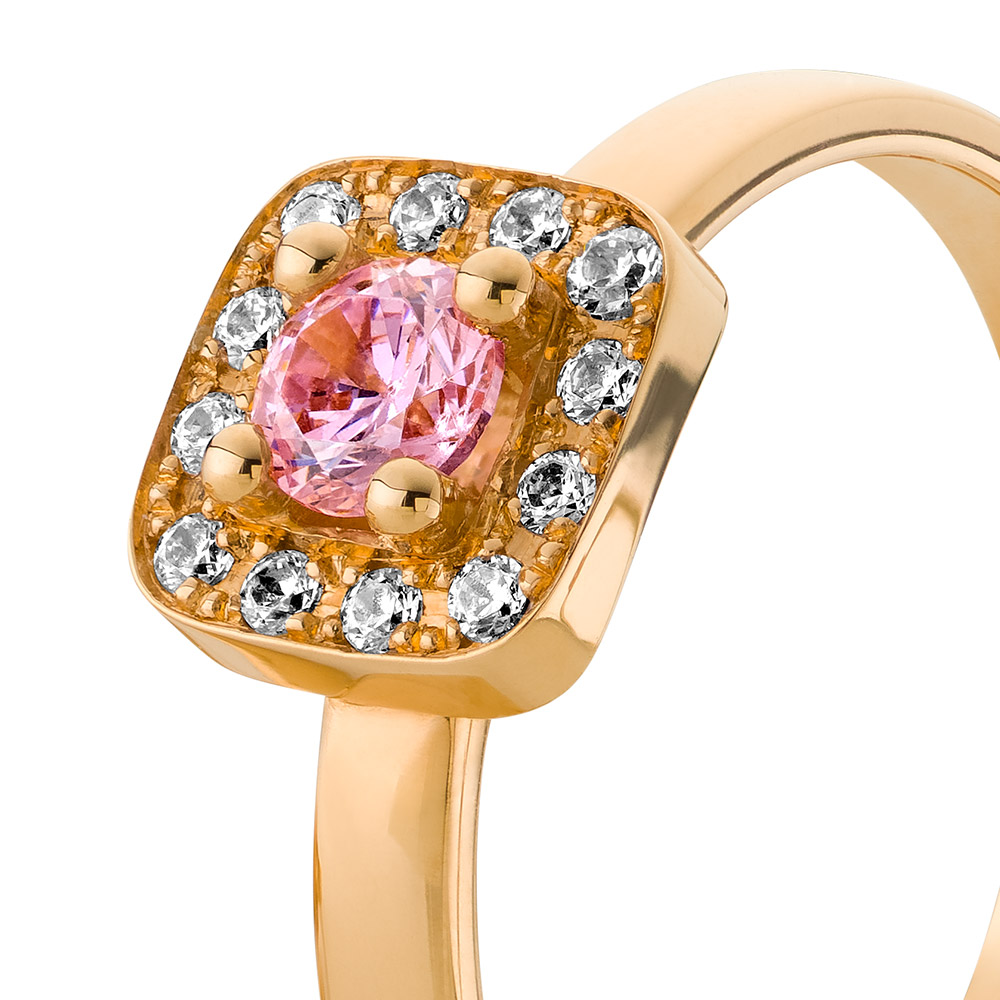

Setting: Carm6
Interval: 0,15-0,30ct + 12×0,01ct
Dimensions: 7,9 x 3,8mm
Info: Square halo, pave set side stones

Setting: Carm7
Interval: 1×0,03ct + 8×0,01ct
Dimensions: 5,9 x 1,6mm
Info: Round halo, pave set side stones

Setting: Carm8
Interval: 7×0,005ct
Dimensions: 4,5 x 1,5mm
Info: Round halo, pave set stones

Setting: Carm Square 1
Interval: 0,08-0,14ct + 12×0,005ct
Dimensions: 7,4 x 3,6mm
Info: Square halo, claw set side stones

Setting: Carm Square 2
Interval: 0,15-0,25ct + 16×0,005ct
Dimensions: 7,4 x 3,6mm
Info: Square halo, claw set side stones

Setting: Carm Square 3
Interval: 0,35-0,55ct + 18×0,005ct
Dimensions: 7,4 x 3,6mm
Info: Square halo, claw set side stones

Setting: Carm Square 4
Interval: 0,40-0,60ct + 14×0,01ct
Dimensions: 9,7 x 4,1mm
Info: Square halo, claw set side stones

Setting: Carm Square 5
Interval: 0,65-1,00ct + 16×0,01ct
Dimensions: 9,7 x 4,1mm
Info: Square halo, claw set side stones

Setting: Carm Square 6
Interval: 0,75-1,20ct + 18×0,01ct
Dimensions: 9,7 x 4,1mm
Info: Square halo, claw set side stones

Setting: Iris
Interval: 1×0,25ct + 12×0,0085ct & / 1×0,50ct + 14×0,0085ct
Dimensions: 8,8 x 7,6 x 3,8mm
Info: Oval halo with oval center stone, claw set round side stones

Setting: Iris
Interval: 1×0,75ct + 14×0,01ct / 1×1,25ct + 18×0,01ct
Dimensions: 11,0 x 9,4 x 4,5mm
Info: Oval halo with oval center stone, claw set round side stones
